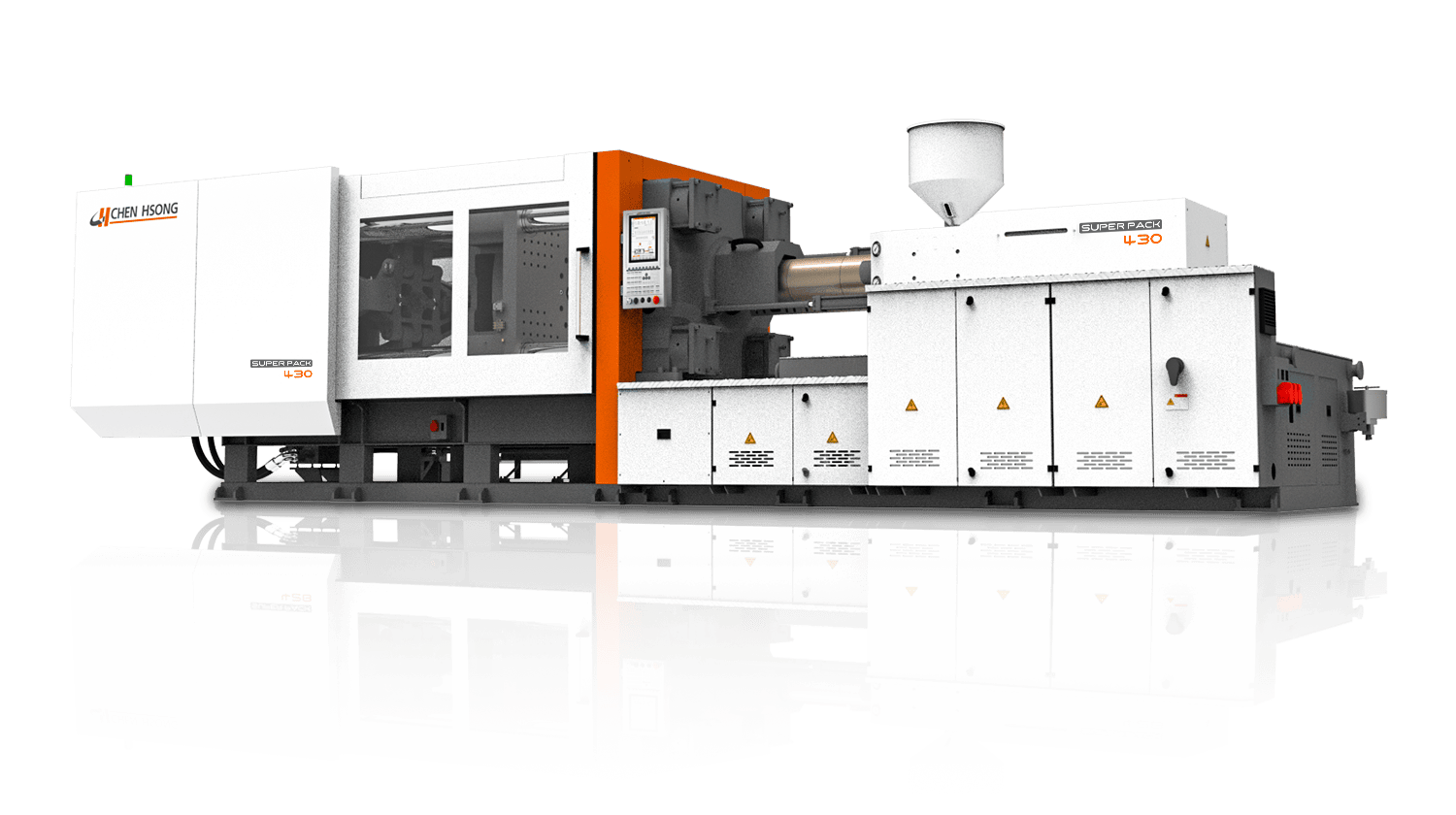

SUPER PACK

Reinforced Thick-Platen Structure

• Mold repeat positioning accuracy ≤1.0mm
• Platen parallelism ≤0.2mm/m

Oversized Reinforced Tie Bars

Deflection rate ≤4% under max clamping force

Reinforced Frame Rigidity

Production stability

High-Speed Dedicated Controller

• Bus-based real-time control system
• Proven hydraulic control circuits

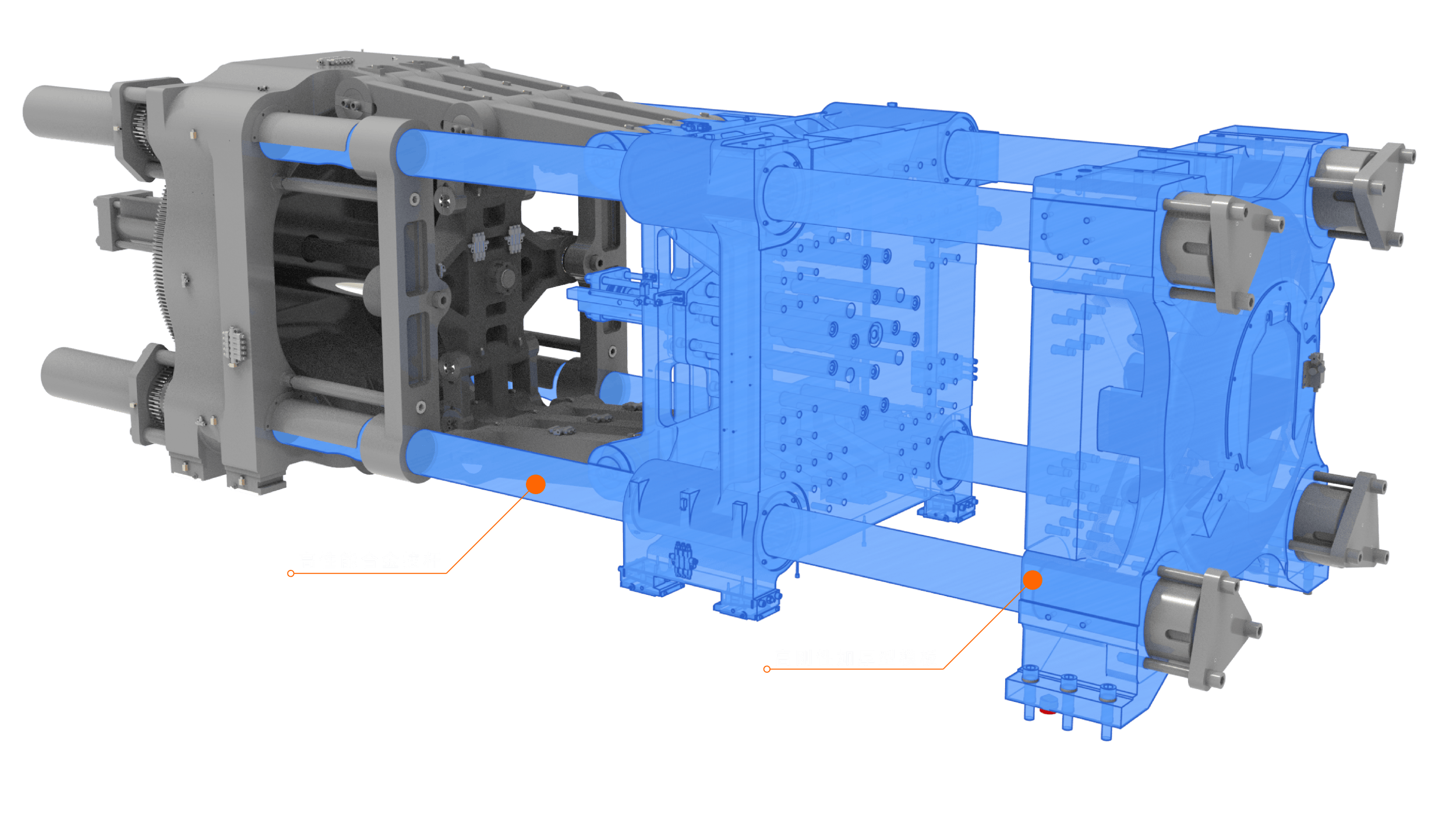

Enhanced Clamping Structure

• High-Performance Alloy Tie Bars
Ensures mold opening/closing stability

• Reinforced Thick-Platen Design
higher rigidity than benchmark platens

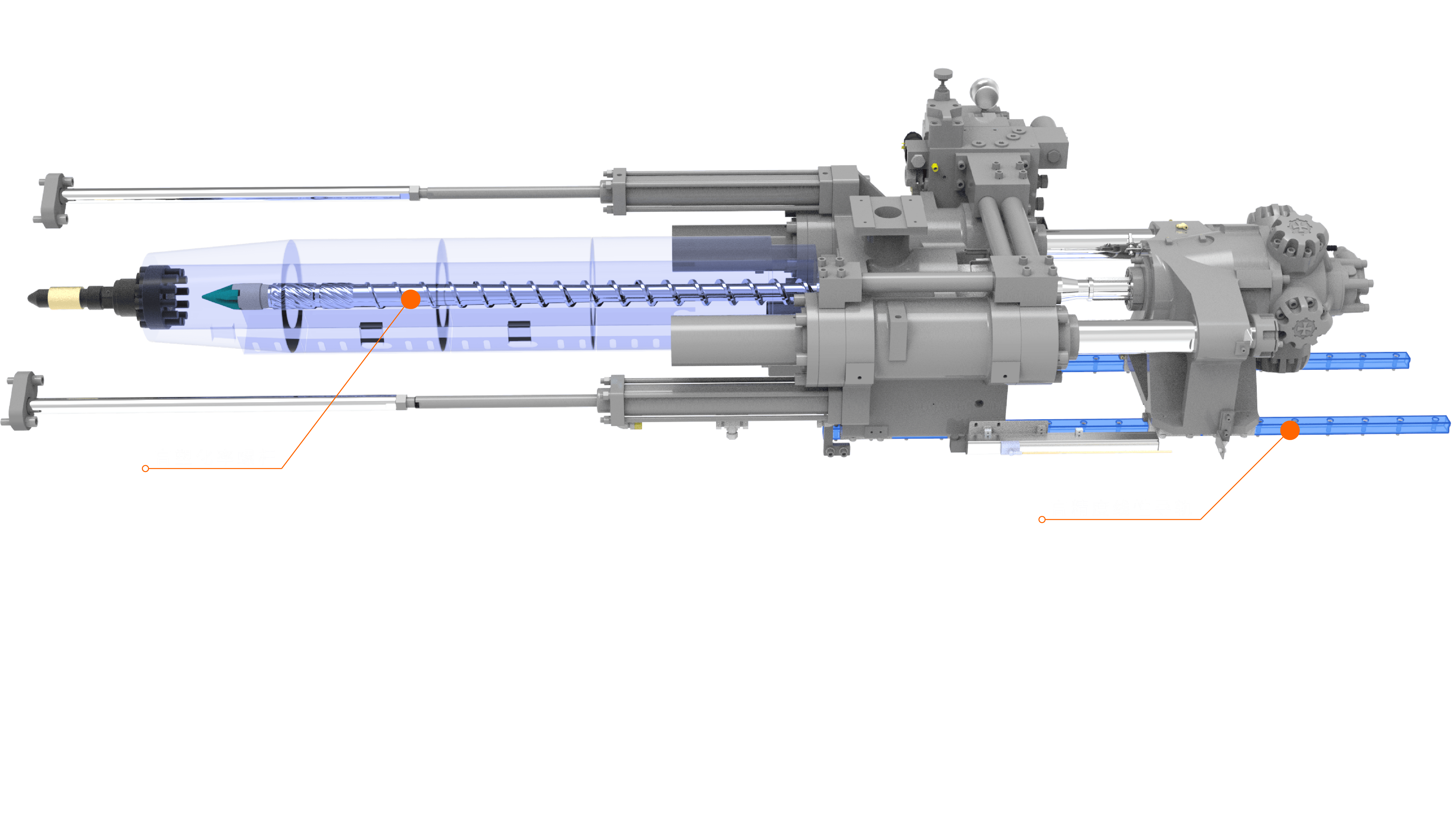

Enhanced Injection System

• Nano Infrared Heating
faster heating rate
improved thermal retention

• High-Plasticizing Screw
51% higher material processing capacity

• Precision Linear Guideways
Enables jerk-free injection motio

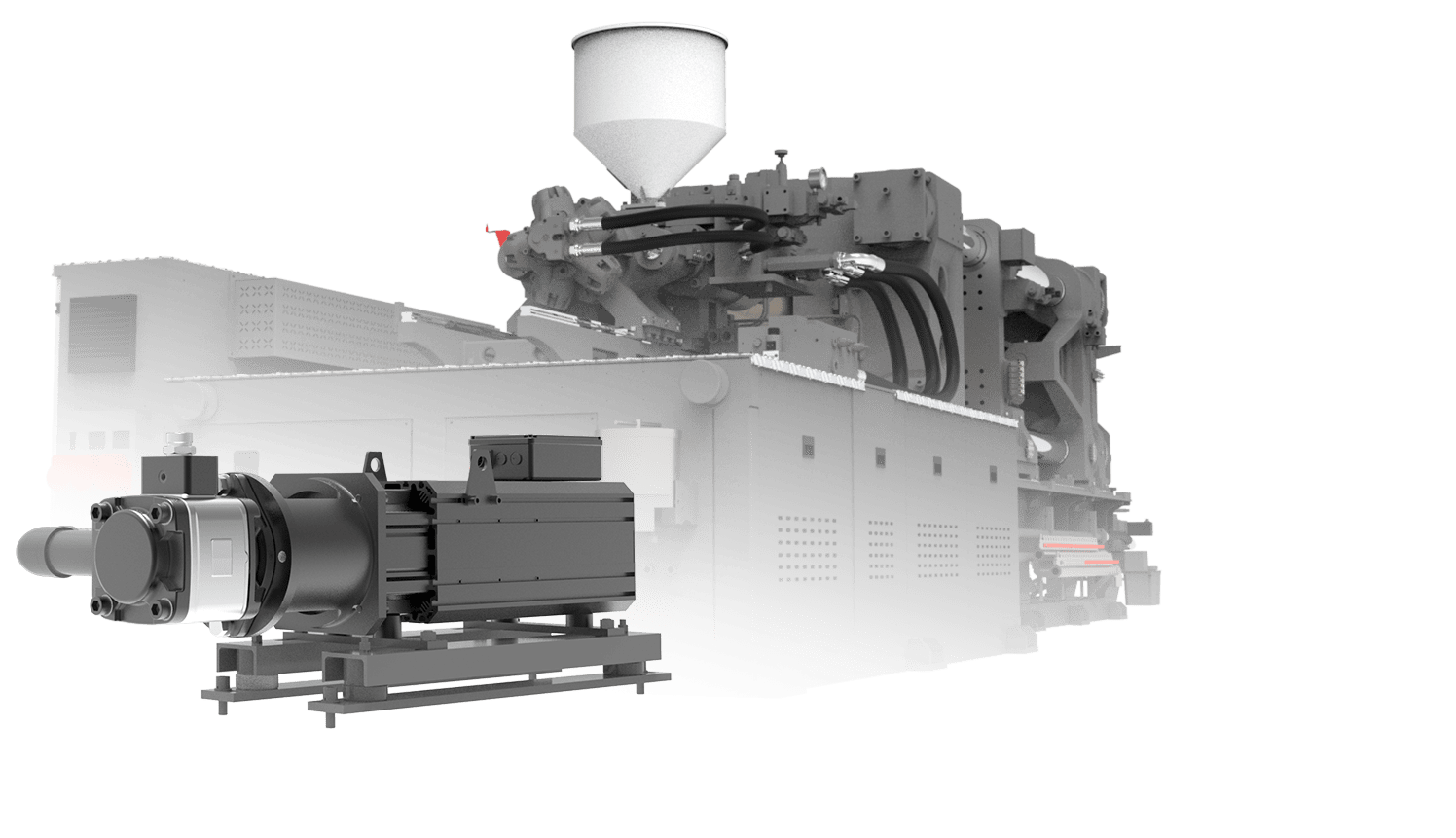

Enhanced Hydraulic System

• Flanged Piping Network
Zero-welding design → eliminates oil leakage risks

• High-Response Servo Pump
29% power density increase

• NAS 6 Class Bypass Filters
Oil cleanliness
Extends hydraulic component life

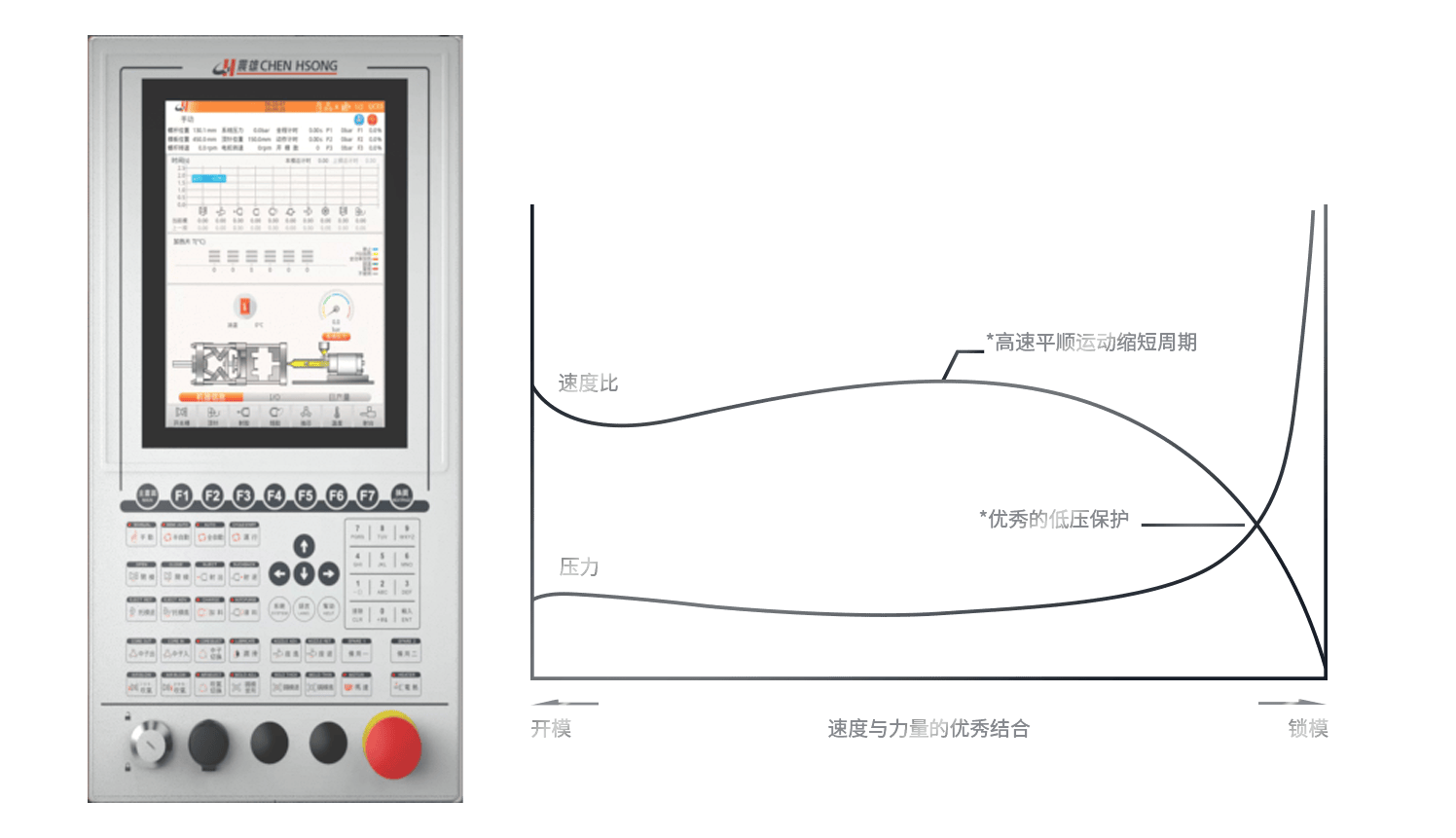

Enhanced Control System

• HD TFT Touch Controller
Intuitive 3-step operation

• Hydraulic Plasticizing Synchronization
Cuts cycle time

• Closed-Loop Hydraulic Control
Pressure stability
Compliant with PLd Safety
