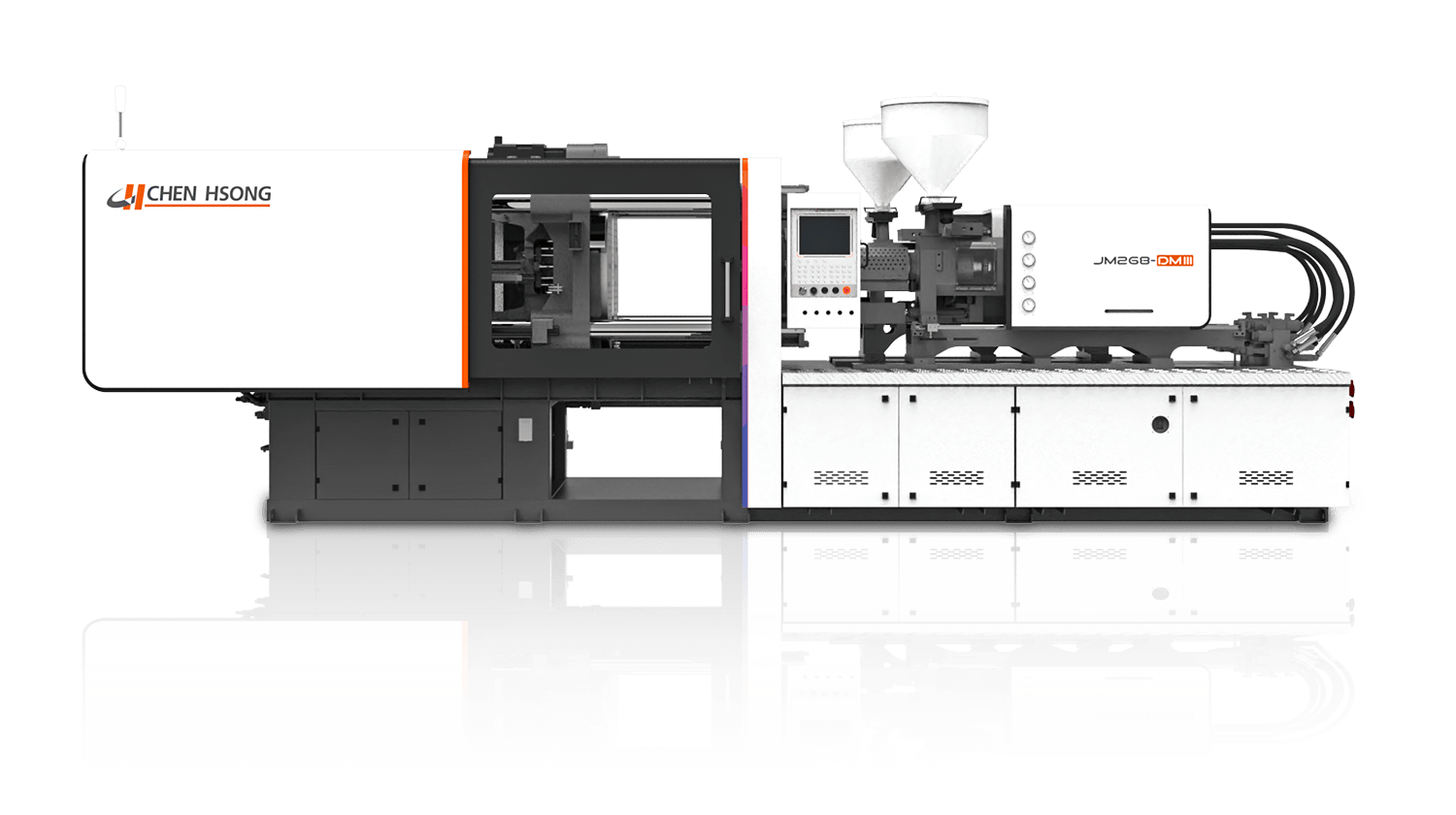

DM III

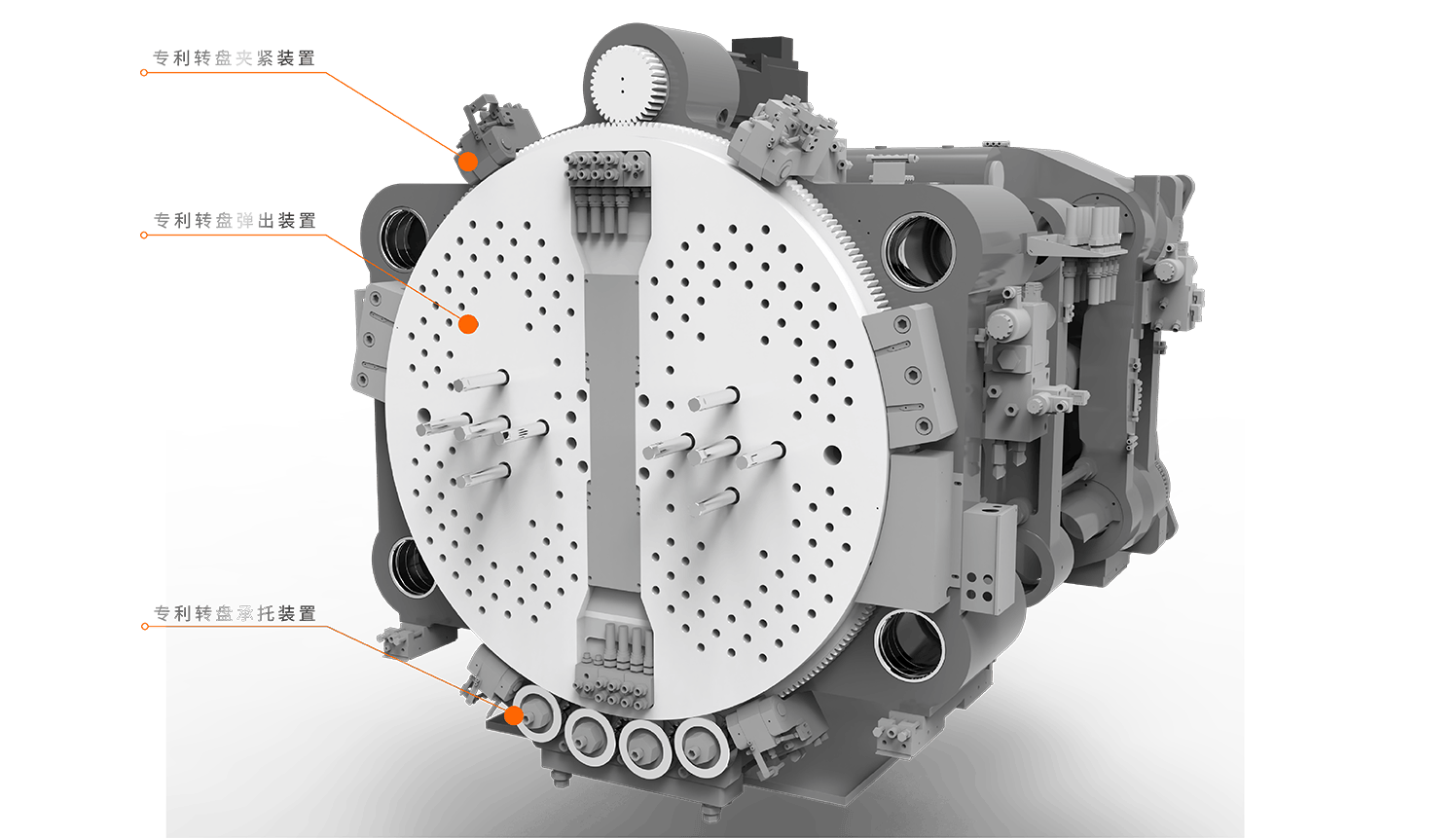

3 Patented Rotary Platen Systems

•Patented Platen Clamping Device
Prevents platen tilt

• Patented Platen Ejection Mechanism
Reduces friction coefficien → ensures precision mold closing

•Patented Platen Support System
Load capacity
Prevents deflection under heavy molds

1 Patented Injection Technology

•Injection Piston & Decompression Rod Separation
• Ensures linear injection motion
• Significantly enhances Injection accuracy

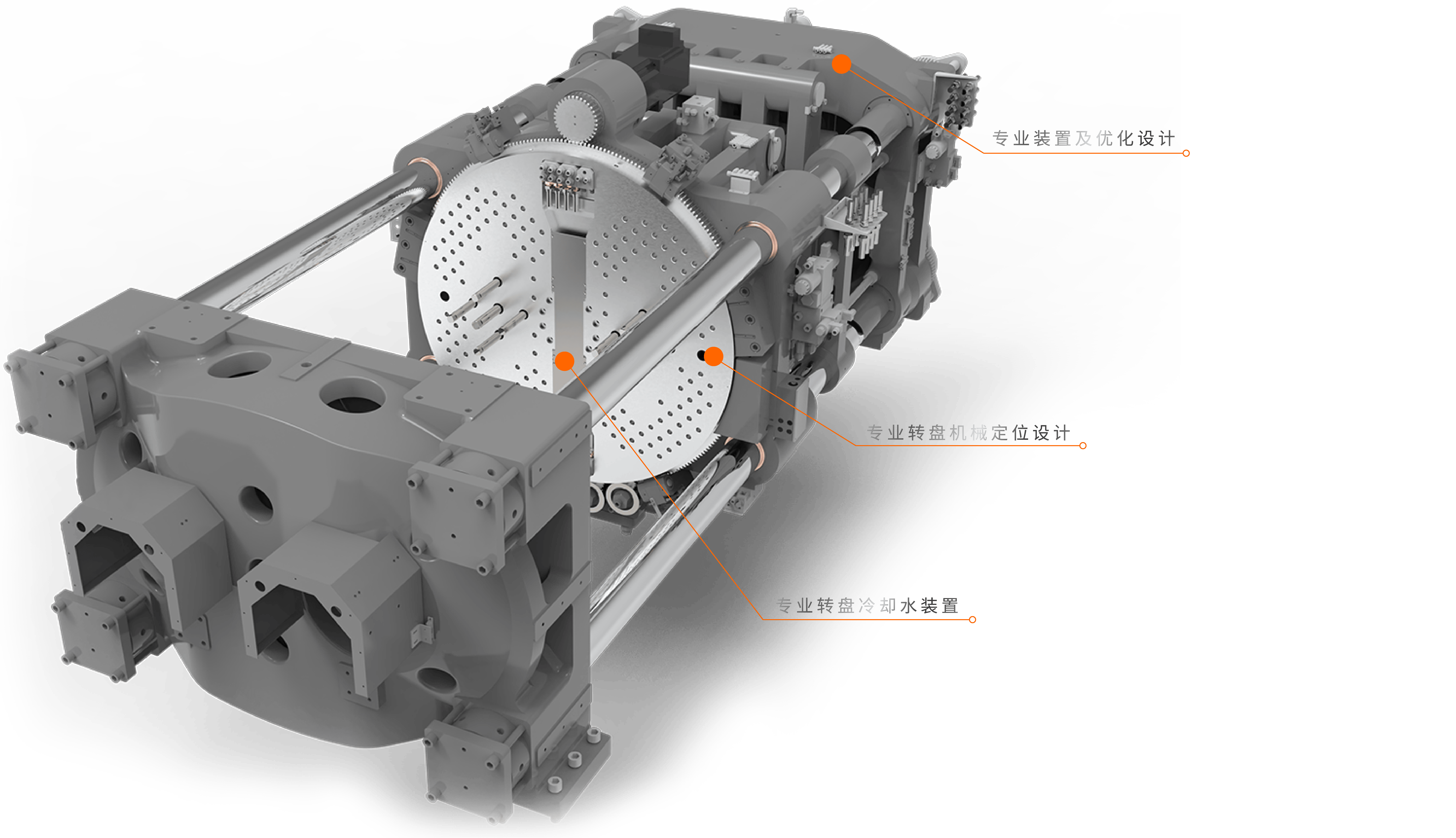

3 Professional Clamping Components

• Reinforced Structural Design
Reinforced tail plate, Increased maximum mold thickness, Enlarged tie bar opening, CNC back pressure control, etc.

• Precision Platen Positioning
Back-mounted mechanism → zero front-space occupation

• Braided PTFE Cooling Hoses
Braided PTFE Cooling Hoses
Temp range: -50°C to +160°C

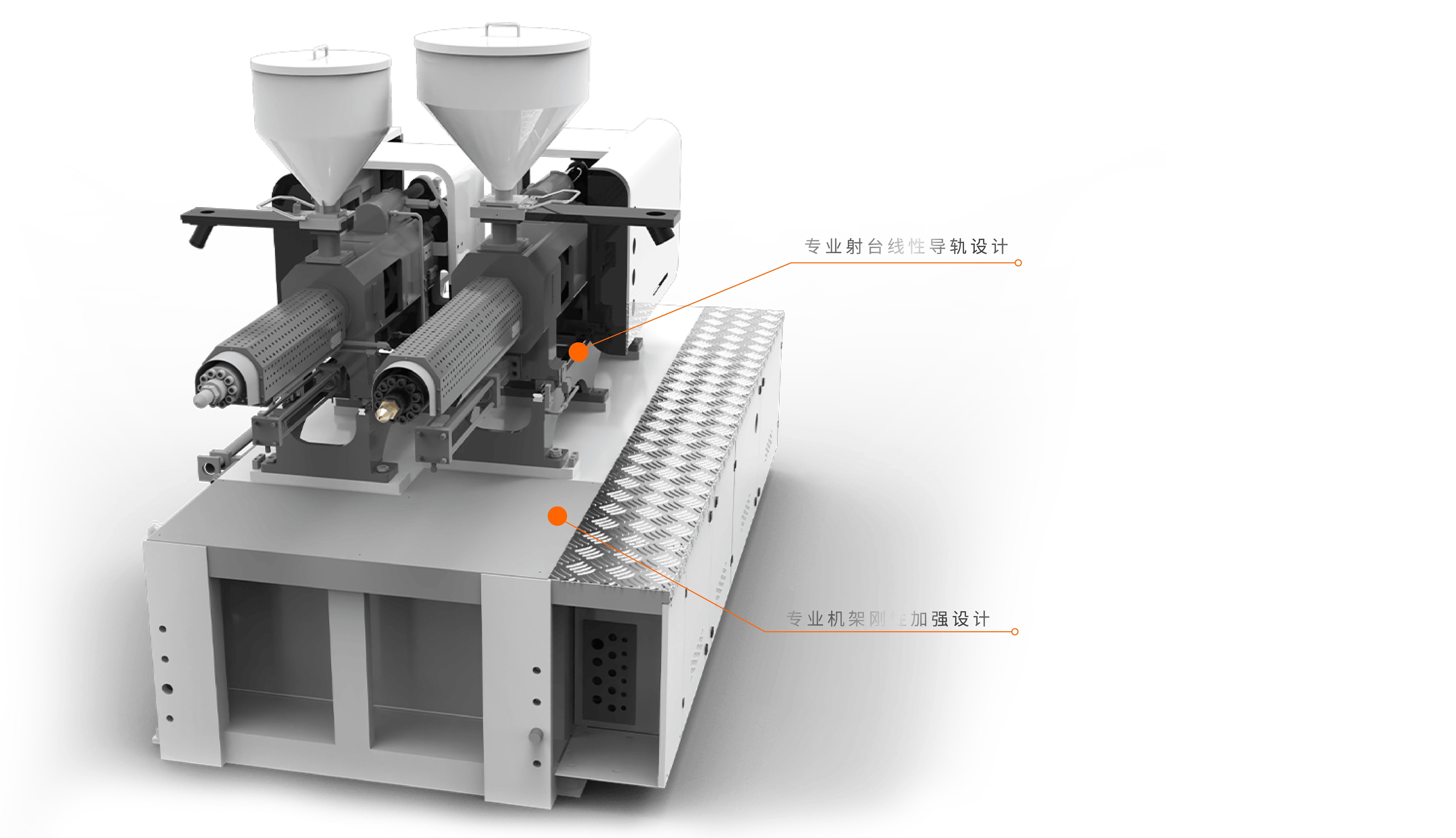

2 Advanced Injection Units

• Linear Guide Injection Carriage
Achieves smooth injection motion, effectively improves injection accuracy, and ensures high product repeatability.

• Reinforced Machine Frame
Significantly enhances Bending resistance

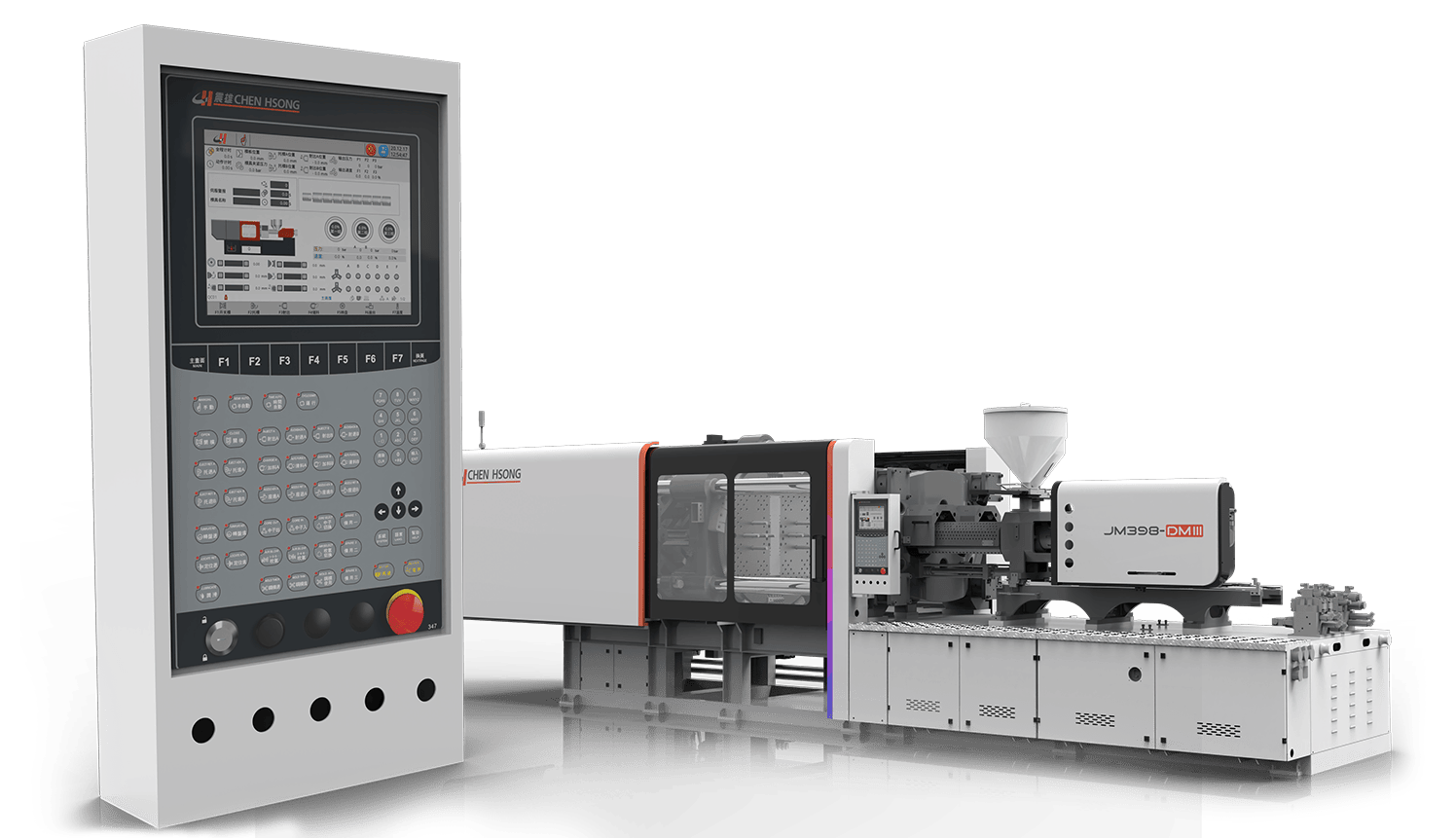

Gen3 Multi-Material Controller

• Dedicated rotary platen control system
Fast rotation speed, precise positioning, easy adjustment

• Dedicated computer controller
Powerful configuration, diverse modes, simple operation

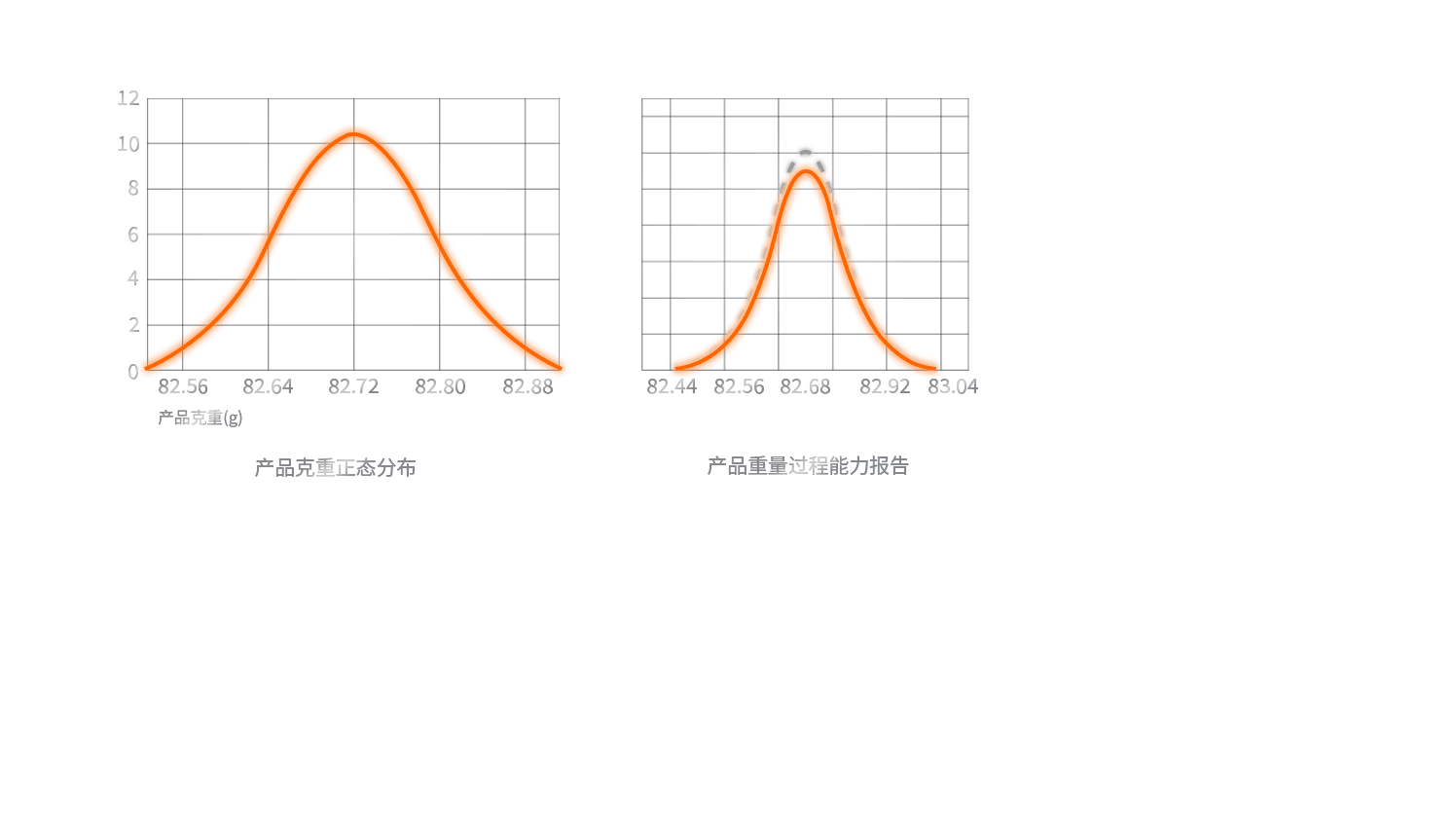

Injection accuracy ±0.2%

• Digitally controlled precision injection technology
• High response, accuracy maintained at ±0.2%
